Description

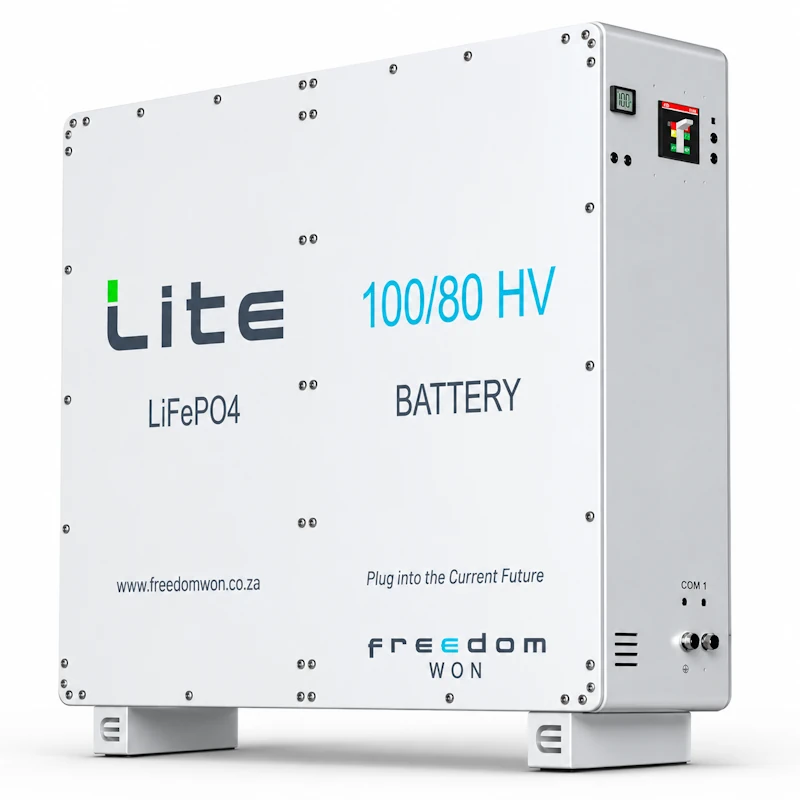

FREEDOM WON LiTE COMMERCIAL 100/80 HV LITHIUM BATTERY – 100KWH
Product Description
The Freedom Won LiTE Commercial 100/80 HV is a high-voltage lithium battery energy-storage solution designed for commercial and industrial solar applications, backup power and large-scale energy management.
With 100 kWh of total energy capacity and 80 kWh of energy at 80% depth of discharge (DoD), this battery provides substantial energy storage for demanding installations. Up to 90 kWh is available at 90% DoD.
The battery uses LiFePO₄ lithium iron phosphate chemistry and operates at a 512 V nominal voltage, making it suitable for compatible high-voltage inverter systems. Freedom Won specifies a maximum recommended continuous inverter capacity of 120 kVA.
Key Features
- 100 kWh total energy capacity
- 80 kWh energy at 80% DoD
- 90 kWh energy at 90% DoD
- 512 V nominal voltage
- 456–568 V operating voltage range
- 200 Ah current capacity
- Up to 200 A charge/discharge current
- Up to 112 kW charge/discharge power on the specified model
- Recommended inverter capacity up to 120 kVA
- LiFePO₄ lithium iron phosphate chemistry
- Integrated Battery Management System (BMS)
- Internal battery protection
- CAN Bus communication
- Real-time battery monitoring capability
- 96–97% round-trip efficiency
- Aluminium enclosure
- IP20-rated enclosure for indoor use
- Designed for commercial and industrial energy-storage applications
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Freedom Won |
| Model | LiTE Commercial 100/80 HV |
| Battery Type | High Voltage Lithium |
| Chemistry | LiFePO₄ |
| Total Energy Capacity | 100 kWh |
| Energy at 80% DoD | 80 kWh |
| Energy at 90% DoD | 90 kWh |
| Current Capacity | 200 Ah |
| Nominal Voltage | 512 V |
| Operating Voltage | 456–568 V |
| Max & Continuous Charge/Discharge Current | 200 A |
| Max & Continuous Charge/Discharge Power | 112 kW |
| Recommended Maximum Inverter Capacity | 120 kVA |
| Short Circuit Current | 5 kA |
| Round-Trip Efficiency | 96–97% |
| Dimensions (H × W × D) | 1405 × 1636 × 365 mm |
| Crated Dimensions | 1600 × 1790 × 575 mm |
| Battery Weight | Approx. 800 kg |
| Crated Weight | Approx. 914 kg |
| Enclosure | 3 mm Aluminium |
| Enclosure Rating | IP20 |
| Communication | CAN Bus |
| Cooling | Natural convection |
| Battery Management | Integrated BMS |
| Warranty | 10 years / 4,000 cycles* |
Specifications are based on Freedom Won’s published LiTE Commercial 100/80 HV documentation.
Ideal Applications
The Freedom Won LiTE Commercial 100/80 HV is suitable for:
- Commercial solar PV systems
- Industrial solar installations
- Large backup-power systems
- Commercial energy storage
- Renewable-energy storage
- Peak-load management
- Energy-cost optimisation
- Solar self-consumption
- Large commercial and industrial facilities
- Compatible high-voltage inverter systems
Built for Commercial Energy Storage
The 100/80 HV provides a high-capacity storage platform for businesses that need to store substantial amounts of solar energy and use it when required.
Its high-voltage architecture, integrated BMS and CAN Bus communication allow it to be integrated into appropriately designed commercial energy-storage systems.
Installation & Compatibility
This is a high-voltage battery system and should only be installed and commissioned by appropriately qualified professionals.
Inverter compatibility must be confirmed before purchase. Freedom Won specifically advises users to confirm that the battery voltage is suitable for the selected high-voltage inverter and to obtain pairing support where necessary.
Why Choose Freedom Won?
Freedom Won’s LiTE battery range is designed around LiFePO₄ technology, long service life and high-efficiency energy storage. The manufacturer states an expected service life exceeding 16 years at 80% DoD and more than 20 years at 50% DoD under its specified conditions.
