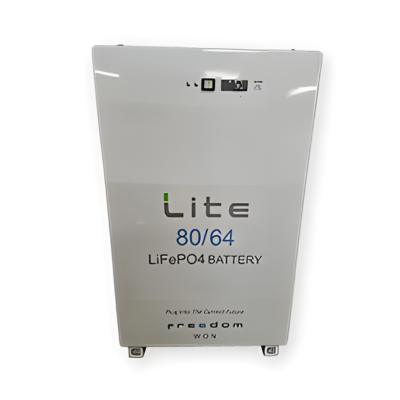

FREEDOM WON LiTE BUSINESS 80/64 HV LITHIUM BATTERY – 80KWH
Product Description
The Freedom Won LiTE Business 80/64 HV is a high-voltage lithium energy storage solution designed for demanding commercial and industrial applications. With 80 kWh of total energy capacity and up to 64 kWh of usable energy at 80% depth of discharge (DoD), it provides reliable energy storage for large solar PV systems, backup power installations and commercial energy management.
Built around advanced LiFePO₄ lithium battery technology, the LiTE Business HV range is designed for long service life, high efficiency and dependable daily cycling.
The battery operates at a 410 V nominal voltage, making it suitable for integration with compatible high-voltage solar inverters and energy-management systems. Freedom Won recommends confirming inverter compatibility before installation.
Key Features
- 80 kWh total energy capacity
- 64 kWh energy at 80% DoD
- 72 kWh energy at 90% DoD
- 410 V nominal voltage
- 365–454 V operating voltage range
- Up to 102 kW maximum discharge power
- 80 kW continuous discharge power
- 200 A continuous charge current
- LiFePO₄ lithium battery chemistry
- Integrated Battery Management System (BMS)
- CAN Bus communication
- Built-in protection and circuit breaker
- Suitable for commercial and industrial energy storage
- Designed for long-term daily cycling
- 10-year / 6,000-cycle standard warranty, subject to the manufacturer’s specified operating conditions
Technical Specifications
| Specification | Details |
|---|---|
| Battery Model | Freedom Won LiTE Business 80/64 HV |
| Battery Chemistry | LiFePO₄ |
| Total Energy Capacity | 80 kWh |
| Energy at 80% DoD | 64 kWh |
| Energy at 90% DoD | 72 kWh |
| Nominal Voltage | 410 V |
| Operating Voltage | 365–454 V |
| Maximum Discharge Current | 250 A |
| Continuous Discharge Current | 200 A |
| Maximum Discharge Power | 102 kW |
| Continuous Discharge Power | 80 kW |
| Maximum & Continuous Charge Current | 200 A |
| Short Circuit Current | 5 kA |
| Dimensions (H × W × D) | 1451 × 751 × 566 mm |
| Battery Weight | Approx. 637 kg |
| Enclosure | Aluminium |
| Enclosure Rating | IP20 |
| Communication | CAN Bus |
| Battery Protection | Integrated circuit breaker and BMS protection |
| Warranty | 10 years / 6,000 cycles* |
*Warranty is subject to the manufacturer’s specified operating conditions, including depth of discharge, charge/discharge rates and temperature.
Ideal Applications
The Freedom Won LiTE Business 80/64 HV is suitable for:
- Commercial solar PV systems
- Industrial solar installations
- Large-scale backup power
- Energy storage systems
- Peak-load management
- Energy cost optimisation
- Renewable energy storage
- Commercial premises requiring reliable backup power
- Compatible high-voltage inverter systems
Important Compatibility Information
This is a high-voltage battery system and must be installed and commissioned by a suitably qualified professional. Compatibility with the selected high-voltage inverter should be confirmed before purchase and installation.
Freedom Won specifies that the battery voltage is suitable for various high-DC-voltage inverters and recommends confirming pairing support.
Why Choose Freedom Won?
Freedom Won is a South African energy-storage manufacturer specialising in lithium battery solutions for residential, commercial, industrial and other high-demand applications. The LiTE range is designed around long service life and reliable energy storage.
