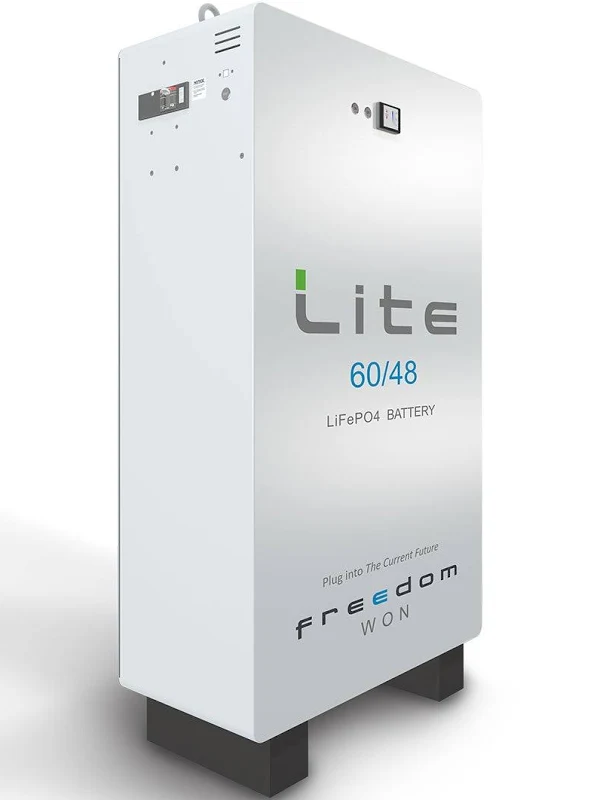

FREEDOM WON LiTE BUSINESS 60/48 52V LiFePO₄ LITHIUM BATTERY – 60KWH
Product Description
The Freedom Won LiTE Business 60/48 52V is a high-capacity LiFePO₄ lithium battery designed for commercial solar, backup power and energy-storage applications.
With 60 kWh of total energy capacity and 48 kWh of energy at 80% depth of discharge (DoD), this battery provides substantial energy storage for commercial and larger-scale solar installations. Up to 54 kWh is available at 90% DoD.
The battery operates at 52V nominal voltage, with a 47–56V operating range, making it suitable for compatible 48V inverter systems.
Key Features
- 60 kWh total energy capacity
- 48 kWh energy at 80% DoD
- 54 kWh energy at 90% DoD
- 52V nominal voltage
- Designed for compatible 48V inverter systems
- 1,200 Ah current capacity
- 800 A maximum and continuous charge current
- 40 kW maximum and continuous charge power
- 1,000 A maximum / 800 A continuous discharge current
- 50 kW maximum / 40 kW continuous discharge power
- LiFePO₄ lithium iron phosphate chemistry
- Integrated Battery Management System (BMS)
- CAN Bus communication
- State-of-charge display
- Built-in protection and shunt-trip circuit breaker
- Aluminium enclosure
- IP20-rated enclosure
- Designed for indoor or fully protected under-cover environments
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Freedom Won |
| Model | LiTE Business 60/48 |
| Battery Chemistry | LiFePO₄ |
| Total Energy Capacity | 60 kWh |
| Energy at 80% DoD | 48 kWh |
| Energy at 90% DoD | 54 kWh |
| Current Capacity | 1,200 Ah |
| Nominal Voltage | 52V |
| Operating Voltage | 47–56V |
| Max & Continuous Charge Current | 800 A |
| Max & Continuous Charge Power | 40 kW |
| Maximum Discharge Current | 1,000 A |
| Continuous Discharge Current | 800 A |
| Maximum Discharge Power | 50 kW |
| Continuous Discharge Power | 40 kW |
| Recommended Maximum Inverter Rating | 35 kVA |
| Short-Circuit Current | 20 kA |
| Dimensions (H × W × D) | 1350 × 800 × 370 mm |
| Crated Dimensions | 1506 × 956 × 568 mm |
| Battery Weight | Approx. 508 kg |
| Crated Weight | Approx. 563 kg |
| DC Connection | 2 × 95 mm² Permopower fly leads per electrode |
| Enclosure | Aluminium |
| Protection Rating | IP20 |
| Communication | CAN Bus |
| Protection | Shunt-trip circuit breaker with BMS protection |
Specifications are based on Freedom Won’s published LiTE Business 60/48 documentation.
Ideal Applications
The Freedom Won LiTE Business 60/48 is suitable for:
- Commercial solar PV systems
- Large residential solar installations
- Commercial backup power
- Energy-storage systems
- Solar self-consumption
- Load management
- Peak-demand management
- Energy-cost optimisation
- Off-grid and hybrid solar systems
- Commercial buildings
- Compatible 48V inverter installations
High-Capacity Commercial Energy Storage
The 60/48 configuration provides 60 kWh of total stored energy, with 48 kWh available at the recommended 80% DoD. The battery can provide up to 54 kWh at 90% DoD under the manufacturer’s specified operating conditions.
Its 52V architecture is designed to integrate with compatible 48V-class inverter systems, making it suitable for high-capacity commercial energy-storage applications.
Battery Protection & Communication
The integrated Battery Management System helps monitor and protect the battery against conditions including overcurrent, cell over-voltage and under-voltage, temperature abnormalities, weak-cell conditions and minimum state-of-charge limits.
The battery also provides CAN Bus communication for communication with compatible inverters and system controllers.
Installation & Compatibility
This is a high-capacity lithium battery intended for professional energy-storage installations.
Inverter compatibility must be confirmed before purchase and installation. The 52V battery is designed for compatible 48V inverter systems, with an operating voltage range of 47–56V. Installation and commissioning should be performed by an appropriately qualified professional.
Warranty & Expected Service Life
Freedom Won specifies a 10-year or 6,000-cycle standard warranty under its stated warranty conditions, including 80% DoD, maximum specified charge/discharge rates and a maximum battery temperature of 25°C.
The manufacturer specifies an expected service life of more than 16 years at 80% DoD and more than 20 years at 50% DoD, subject to the stated operating conditions.
