Description

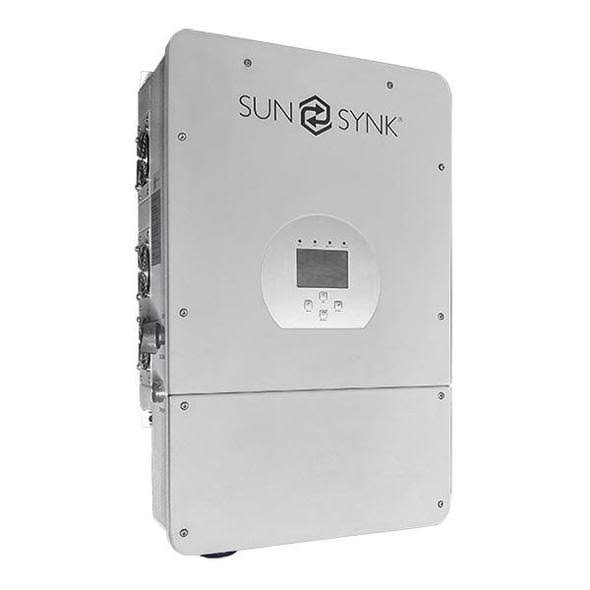

Sunsynk 8kW Hybrid 48V Inverter

The Sunsynk 8kW Hybrid 48V Inverter is a premium single-phase hybrid inverter designed for residential and light commercial solar energy systems. Combining advanced dual MPPT technology, intelligent battery management, and seamless integration with solar panels, battery storage, the utility grid, and generators, it delivers exceptional efficiency, flexibility, and reliable backup power.

Compatible with both Lithium-ion and Lead-Acid battery systems, the Sunsynk 8kW Hybrid Inverter helps maximise solar self-consumption, reduce electricity costs, and provide uninterrupted power during load shedding and grid outages.

Key Features

• 8kW Rated Output Power – Ideal for larger homes, offices, and small commercial installations.
• 48V Battery System – Compatible with a wide range of 48V lithium-ion and lead-acid batteries.
• Dual MPPT Technology – Two independent MPPT trackers maximise solar energy production for improved system efficiency.
• High PV Input Capacity – Supports up to 10,400W of solar PV input for greater energy generation.
• Pure Sine Wave Output – Provides clean, stable power for sensitive electronics and household appliances.
• Hybrid Operation – Seamlessly manages energy from solar panels, batteries, the utility grid, and an optional generator.
• Fast UPS Switching – Provides uninterrupted backup power with transfer times of less than 10ms.
• Parallel Operation – Multiple inverters can be connected to expand system capacity as energy requirements grow.
• Smart Monitoring – Supports WiFi monitoring and remote management via the Sunsynk mobile app.
• Intelligent Battery Communication – CAN and RS485 communication for seamless integration with compatible lithium batteries.
• IP65 Protection Rating – Suitable for both indoor and outdoor installations.

Technical Specifications

• Model: SUNSYNK-8K-SG01LP1 / SG02LP1
• Rated Output Power: 8,000W
• Maximum AC Output Power: 8,800W
• Battery Voltage: 48V (40V–60V)
• Battery Compatibility: Lithium-ion & Lead-Acid
• Maximum Battery Charge Current: 190A
• Maximum Battery Discharge Current: 190A
• Maximum PV Input Power: 10,400W
• Maximum PV Input Voltage: 500V DC
• MPPT Trackers: 2
• MPPT Voltage Range: 150V – 425V
• Maximum Efficiency: 97.6%
• Communication: CAN, RS485, WiFi
• Protection Rating: IP65
• Cooling: Intelligent Air Cooling
• Operating Temperature: -45°C to +60°C
• Dimensions: 708 × 445 × 233 mm
• Weight: Approximately 30kg
• Warranty: 5 Years (manufacturer terms apply).

Ideal Applications

• Residential solar systems
• Commercial and office installations
• Hybrid solar systems
• Backup power and load shedding
• Energy independence
• Agricultural and remote power applications

Why Choose the Sunsynk 8kW Hybrid Inverter?

The Sunsynk 8kW Hybrid 48V Inverter combines high-efficiency solar charging, intelligent battery management, and flexible operating modes in one powerful solution. Its dual MPPT design, high PV input capacity, robust protection features, and remote monitoring capabilities make it an excellent choice for homeowners and businesses seeking reliable, efficient, and future-ready solar power.
