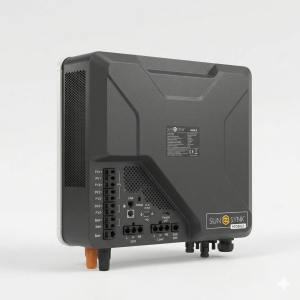

Sunsynk Lynks 8kW 48Vdc Single Phase IP41 Hybrid Inverter

The Sunsynk Lynks 8kW 48Vdc Single Phase IP41 Hybrid Inverter is a high-performance hybrid inverter designed to deliver efficient, reliable, and intelligent energy management for residential and light commercial solar systems. Combining solar generation, battery storage, grid power, and generator support into one advanced unit, it ensures maximum energy efficiency while providing uninterrupted backup power during outages.

Featuring dual MPPT technology, 48V battery compatibility, and intelligent energy management, the Lynks 8kW Hybrid Inverter helps maximise solar self-consumption, lower electricity costs, and provide dependable power for homes and businesses.

Key Features

8kW Rated Output Power – Ideal for residential homes, offices, and small commercial installations.
48V Battery System – Compatible with a wide range of 48V lithium-ion and lead-acid battery banks.
Dual MPPT Technology – Two independent MPPT trackers optimise solar energy production for improved efficiency.
High PV Input Capacity – Supports large solar arrays for maximum energy generation.
Pure Sine Wave Output – Delivers clean, stable electricity for sensitive electronic devices and appliances.
Hybrid Energy Management – Seamlessly integrates solar panels, batteries, the utility grid, and generator power.
Fast UPS Switching – Provides uninterrupted power to essential loads during grid failures.
Intelligent Battery Communication – Supports CAN and RS485 communication with compatible lithium battery systems.
Remote Monitoring – WiFi-enabled monitoring allows real-time system performance tracking and remote management.
Parallel Expansion – Supports multiple compatible inverters for larger energy storage systems.
Comprehensive Protection – Includes overload, overvoltage, overheating, short-circuit, reverse polarity, and surge protection.
IP41 Protection Rating – Suitable for indoor installations with protection against solid objects and dripping water.

Technical Specifications

Model: Sunsynk Lynks 8kW Hybrid Inverter
Rated Output Power: 8,000W
Output Configuration: Single Phase
Battery Voltage: 48V DC
Battery Compatibility: Lithium-ion & Lead-Acid
Maximum PV Input Power: Up to 10,400W
Maximum PV Input Voltage: 500V DC
MPPT Trackers: 2
MPPT Voltage Range: 150V – 425V
Maximum Battery Charge Current: 190A
Maximum Battery Discharge Current: 190A
Maximum Efficiency: Up to 97.6%
MPPT Efficiency: Greater than 99%
Communication: CAN, RS485, WiFi
Protection Rating: IP41
Cooling: Intelligent Fan Cooling
Operating Temperature: -25°C to +60°C
Display: LCD Display with LED Status Indicators
Warranty: Manufacturer warranty applies.

Ideal Applications

Residential solar systems
Hybrid solar installations
Backup power and load shedding
Offices and small commercial buildings
Energy independence and self-consumption
Remote and rural power solutions

Why Choose the Sunsynk Lynks 8kW Hybrid Inverter?

The Sunsynk Lynks 8kW 48Vdc Single Phase IP41 Hybrid Inverter combines powerful performance, intelligent energy management, and advanced solar charging technology into one dependable solution. With dual MPPT trackers, fast backup switching, remote monitoring, and broad battery compatibility, it provides a reliable and future-ready foundation for modern solar energy systems.
